Valve Actuator Assembly Line with 9 Variants

 Features:

• It is four station line with two screwing, one Greasing and one all parts assembly station including belt conveyor for Caps.
• PLC Controlled.
• Rack for child parts arrangement.
• Operation parameters set up via HMI.

Gear Shifter Assembly Line

Features:

• It is four station line with bracket press, Socket press, Knob Press, Bush Press and gear shifter machine machine.
• PLC Controlled.
• Operation parameters set up via HMI.

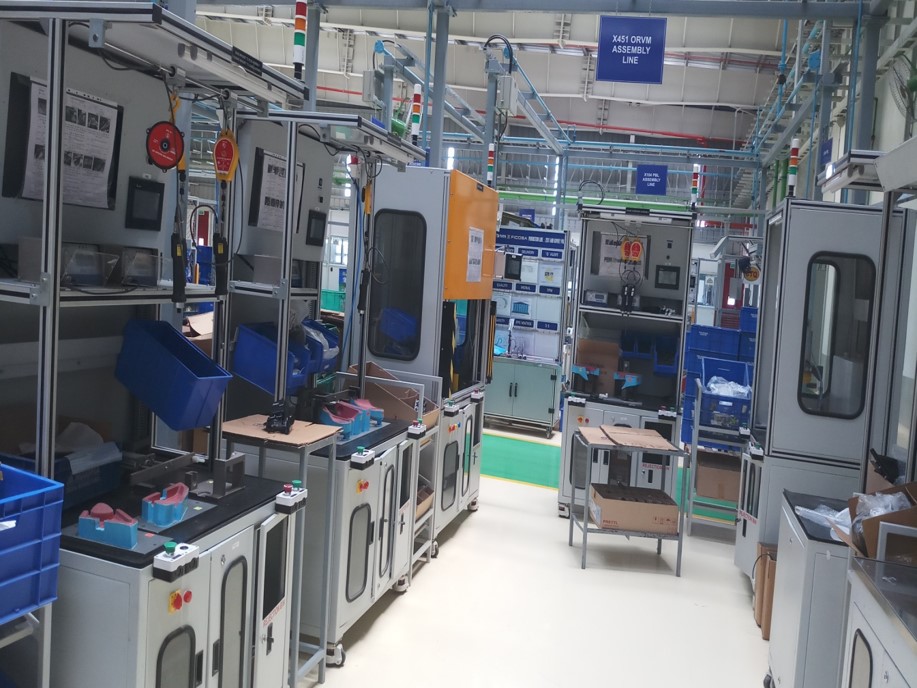

ORVM Assembly Line

Features:

• It is five station line EOL testing machine with Printer and barcode traceability.
• PLC Controlled.
• Operation parameters set up via HMI.
• Precise ORVM measurement of different angles in multiple variants with load testing.

X-Y Axis Riveting Machine

Features:

• Precise movement of bed in X and Y axis with minimum time.
• Precise riveting height adjustment.
• Settable X and Y coordinates with user friendly HMI screen.
• LH/RH fixture movement detection.
• Aesthetic look and robust design with safety features.

AUTO GREASING MACHINE

Features:

• Auto height adjustment of work table as per user.
• User settable grease discharge.
• Ease of operation with minimum wastage of grease and time.

ACTUATOR ASSEMBLY MACHINE

Features:

• Fully automated plc and hmi controlled machine with high accuracy.
• Capable of performing nine diifferent assebbly variations in a single machine.
• Fully functional automated door movement for safety.
• Interfaced with torque screw gun machine.

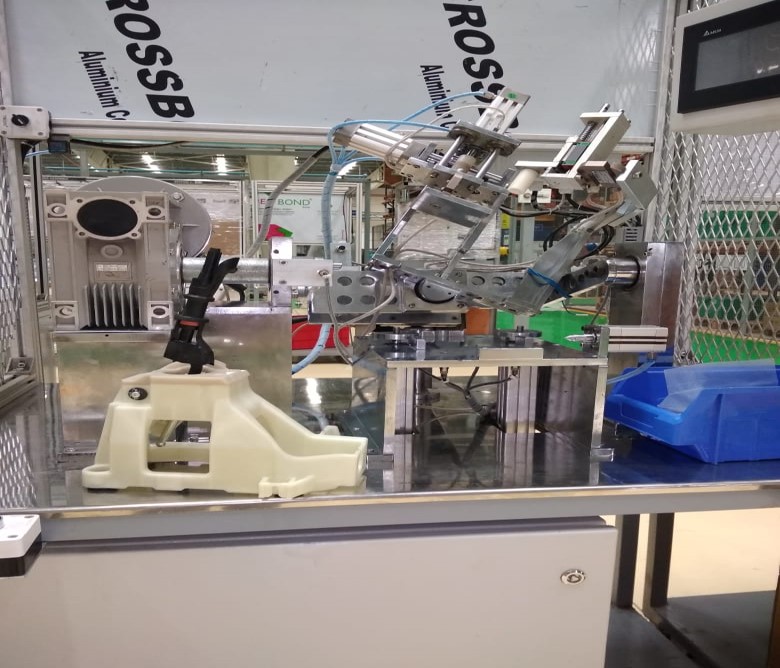

Gear Shifter machine

Features:

• Capable of performing diifferent positions and angles measurement.
• Online load checking on gear shifeter with help of hmi.
• Child part pokayoke oremtation and safety function.
• Bar code print generation as per standards to maintain quality and tracking.

PBL RACHET PRESS MACHINE

Features:

• Plc and hmi controlled hydro pneumatic press.
• Machine equiped with automated greasing function.
• Capable of detcting rachet presence in required postion with safety functions.
• Online pressing load display for each cycle.

Hand Brake EOL

Features:

• Capable of measuring online load of lateral play, button force, pbl angle measurement with load.
• Pbl switch engage detction.
• Communicated with couth pin marking system for marking purpose.
• Bar code print generation as per standards to maintain quality and tracking.

PROGRAMMABLE SCREWING GUN

Features:

• Used to perform required torque for screwing purpose.
• Multiple torque range.
• Customized screw gun as per requirement available.
• Robust design, easy to handle.
• Communication port RS232 available.
• Digital I/O feedback.
